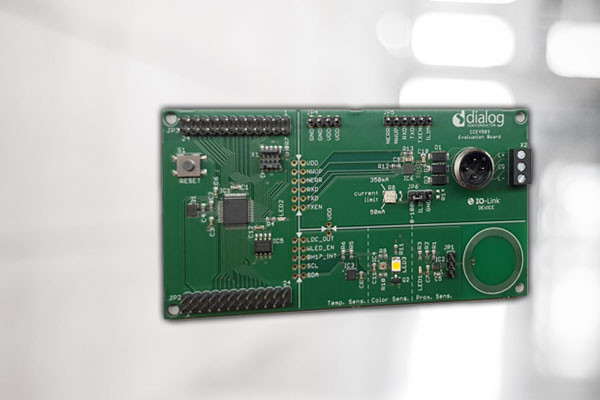

CCE4503 Evaluation Board V1

The CCE4503 is an easy-to-use device side IO-Link compliant transceiver IC.

It combines IO-Link compliant communication capability with advanced protection circuitry and additional features while keeping the application small and simple.

Controlled by an UART interface (TXD, RXD, TXEN), the output drivers can be configured as PNP, NPN or Push-Pull. Three LDO options and an automatic wake-up detection simplify the overall system requirements and reduce the need for additional external circuitry. The integrated protection features such as reverse-polarity protection, overcurrent protection, undervoltage detection and thermal protection ensure a robust functionality and communication.

  • With the small 3mm x 3mm DFN10 package size, it is especially suitable for space limited sensor and actuator applications.

User Manual and source code is available on request.
