iqMAXREFDES23

Referenzdesign IO-Link digital temperature sensor

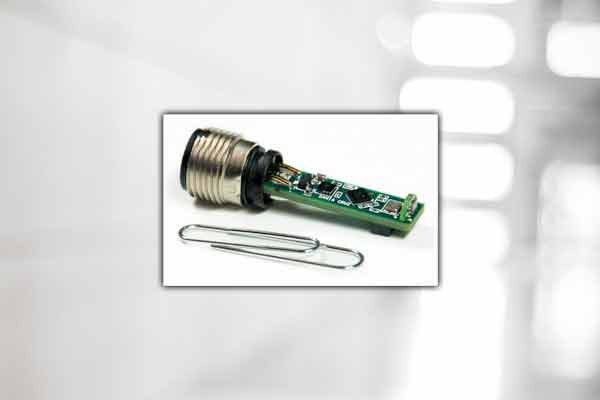

Maxim’s Santa Cruz (MAXREFDES23#) reference design is the world’s smallest IO-Link® light sensor compliant with IEC 61131-9. The entire design fits onto a 6.5mm x 25mm printed circuit board (PCB).
The purpose of this project is by giving the user a strong basis to start develop production-ready IO-Link® application based on Maxim Integrated IO-Link device transceiver (MAX14821), a Renesas ultra-low-power, 16-bit microcontroller (RL78) and iqStack® IO-Link Device Stack.

User Manual and source code is available on request.
