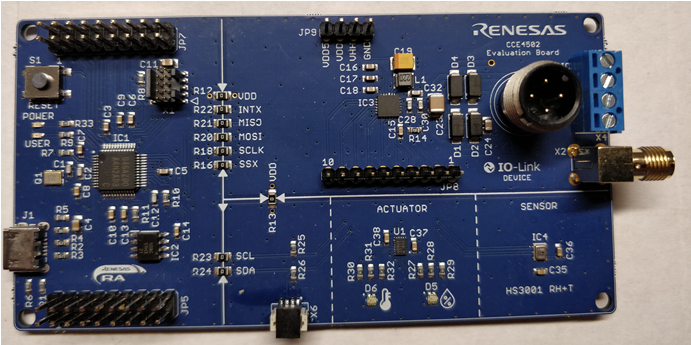

The CCE4502-EVAL-V4 evaluation board is designed to evaluate the CCE4502 IO-Link device PHY with integrated frame handler.

The CCE4502 is a highly integrated device-side IO-Link compliant transceiver IC. The built-in hardware-based IO-Link frame handler provides full IO-Link protocol handling facilities making it simple to connect a host microcontroller (MCU) via the UART interface.

• Renesas ARM Cortex-M33 μC RA4M2
• Programmable via SWD and USB
• Reset Button
• Power and User LED indicator
• Renesas 8 Kbit EEPROM
• Additional on-board protection circuitry
• CCE4502 3.3V Buck Mode IO-Link Device IC
• M12 connector + terminal blocks for IO-Link interface
• Renesas HS3001 Temperature and Humidity Sensor
• Renesas SLG46826V GreenPAK TM (configured as LED driver)
• All pins accessible via pin-headers for microcontroller and IO-Link Device IC
• Independent use of sections
