iqMonitor

iqMonitor Tool und Dokumentation wird aktualisiert zu Version 1.0.5.1

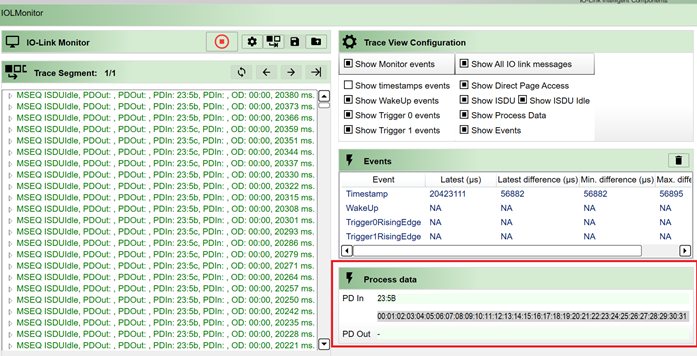

1.0 Process Data is showing in realtime

If process data is available, if will be shown additionally in separate block

2.0 iqMonitor Tool Setting

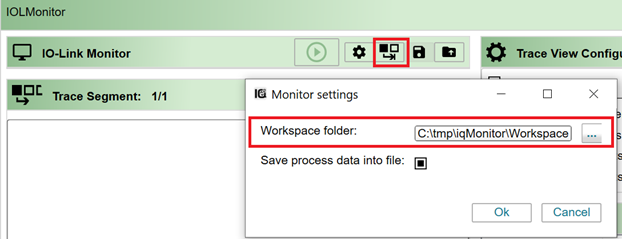

2.1 Setup user trace folder

  • By default, trace files are written into c:\Users[username]\AppData\Roaming\iqMonitor\Workspace[date_time]
  • To change default folder to saving trace file – open iqMonitor Tool setting, select desired folder and press enter

2.2 Activate storing process data into text file

To activate saving process data into file – open iqMonitor Tool setting, select option “Save process data into file” and press ok. The process data will be saved into file “process_data.log” in the same folder as trace files: [Workspace folder][date_time folder]

  • File Format:
    [Date/Time] | [Master message timestamp] | [Process data in] | [Process Data out] | [word “changed”, if process data has been changed]

  • Example:
    11/05/2021 12:00:31 | 4160498 | 23:5E | - |
    11/05/2021 12:00:31 | 4167753 | 23:5D | - | changed
    11/05/2021 12:00:31 | 4175008 | 23:5D | - |
    11/05/2021 12:00:31 | 4182263 | 23:5D | - |
